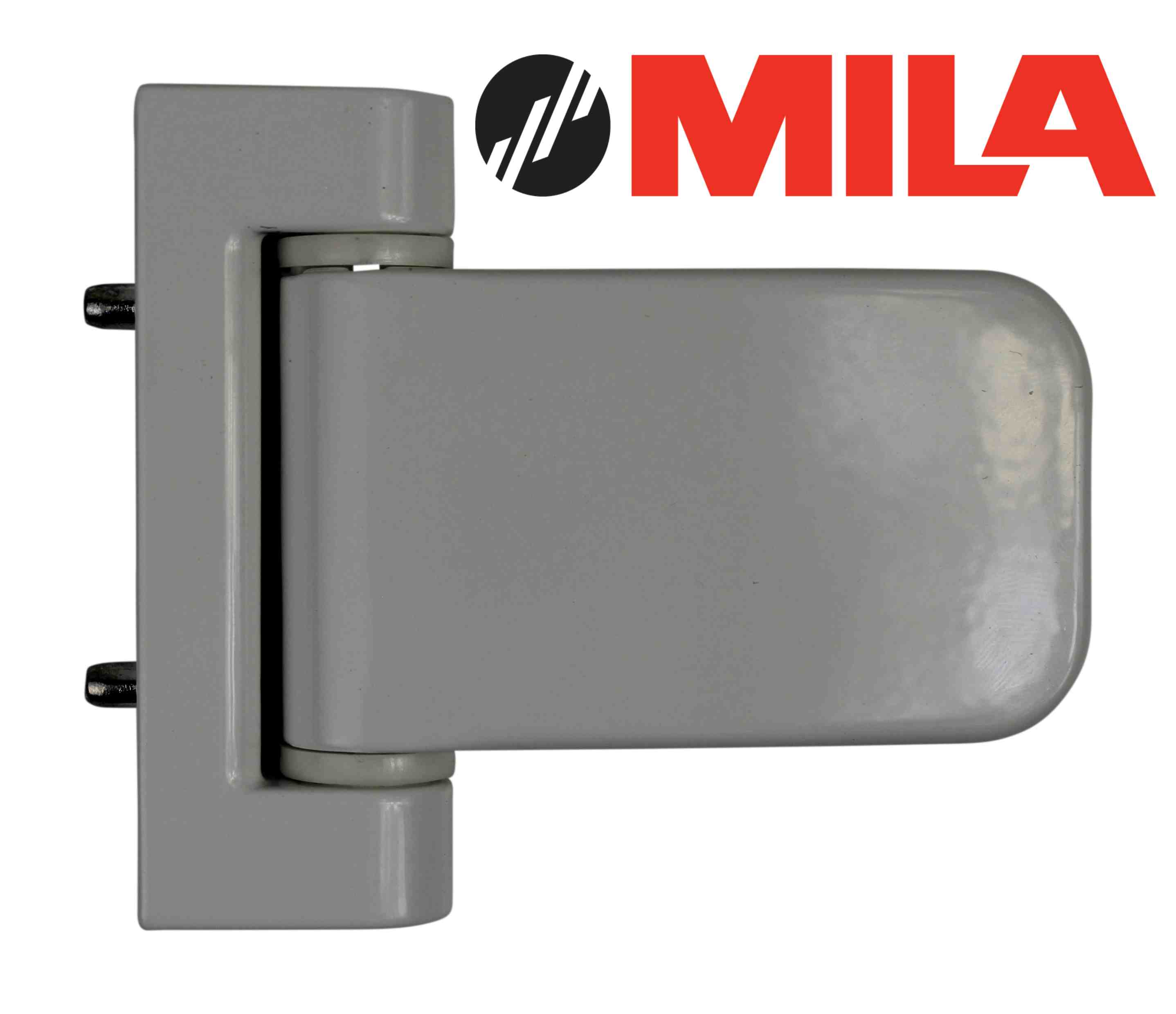

Mila ProSecure uPVC Door Flag Hinge – White Adjustable Security Door Hinge

Upgrade or replace your uPVC door hinge with the Mila ProSecure Enhanced Security Door Flag Hinge, designed for fast installation, precise adjustment and reliable everyday performance.

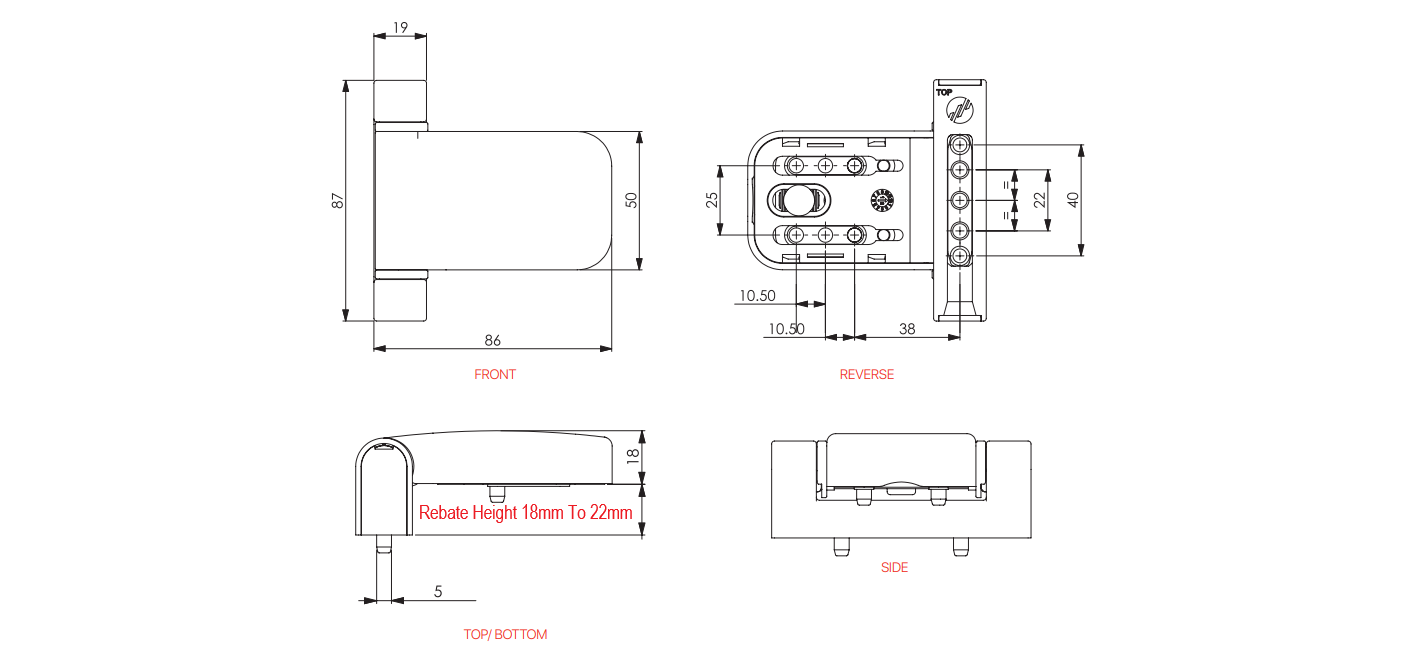

Finished in White, this high-quality hinge is suitable for a range of uPVC door applications and is available for 18mm, 19mm, 20mm, 21mm and 22mm rebate heights.

Fast, Easy Installation

The Mila ProSecure hinge is designed to be quicker and easier to fit than conventional security door hinges.

Supplied fully assembled in one piece and ready to fit straight from the box, the hinge can be installed in less than a minute under test conditions.

Its innovative Glider Technology allows the complete hinge to slide directly onto the frame as a single unit. The virtually jigless design requires only two pre-drilled holes in the frame, helping make installation faster and more straightforward.

Once positioned, the captive sash lid pivots open, allowing the concealed fixing datum to be secured directly to the sash.

For doors installed in low-reveal applications, the ProSecure hinge can also be front fitted by simply removing the steel hinge pin.

Quick & Precise Adjustment

The patented front adjustment system makes door alignment fast and simple.

Simply rotate an Allen key through 90° to achieve:

• Lateral adjustment: +/-5mm
• Vertical adjustment: +5mm
• Compression adjustment: +/-1mm

Vertical and compression adjustments are easily accessed from the top of the hinge, allowing accurate final positioning after installation.

Key Features

• White finish
• Mila ProSecure enhanced security door hinge
• Suitable for uPVC door applications
• Available for 18mm, 19mm, 20mm, 21mm and 22mm rebate heights
• Supplied fully assembled and ready to install
• One-piece fitting design
• Fast installation
• Innovative Glider Technology
• Virtually jigless fitting
• Concealed sash fixing
• Suitable for front fitting in low-reveal installations
• Patented front adjustment system
• +/-5mm lateral adjustment
• +5mm vertical adjustment
• +/-1mm compression adjustment
• Strong and durable construction
• Ideal for replacement, repair and new installations

Ideal Replacement for uPVC Doors

A practical choice for replacing worn, damaged or poorly adjusted hinges, the Mila ProSecure Flag Hinge offers excellent adjustability and a professional-quality fitting system.

It is ideal for doors that are dropping, catching, difficult to close or require precise realignment, helping restore smooth operation and a secure fit.

Please Check Compatibility Before Ordering

Door hinges can vary depending on the profile, rebate height and original installation.

Please check your existing hinge, measurements and rebate height carefully before purchasing to ensure compatibility.

Choose the Mila ProSecure uPVC Door Flag Hinge for fast fitting, easy adjustment and dependable door performance.
